PreSys

PreSys is an engineering simulation solution for the development of finite element analysis models. It offers an intuitive user interface with many streamlined functions, allowing fewer operation steps with a minimum amount of data entry along the way.

Using PreSys, the user can analyse product designs, view simulation results and analyse/predict how the product will perform in a given circumstance.

presys

Capability:

Complete finite element modelling toolset

  • Task manager guides the user through operations
  • Surface auto meshing
  • Boundary condition definition
  • Multiple Mesh Generation
    • Allows variety of ways along the surface, curve, shell mesh, mesh face and other body stretched hexahedral meshes
    • For variety of regular meshes, by setting the geometry of the body and grid size; direct generation of a mesh is possible.
    • Generates a 4-node or 6-node tetrahedral mesh directly in a closed geometry, or in a closed shell mesh
  • Material library
  • Unlimited model size
  • Direct interface with LS-DYNA, NISA, Moldex3D NEi Nastran, MSC NASTRAN
  • Interactive mesh editing
  • Model check and repair tools
  • Continuous data error checking

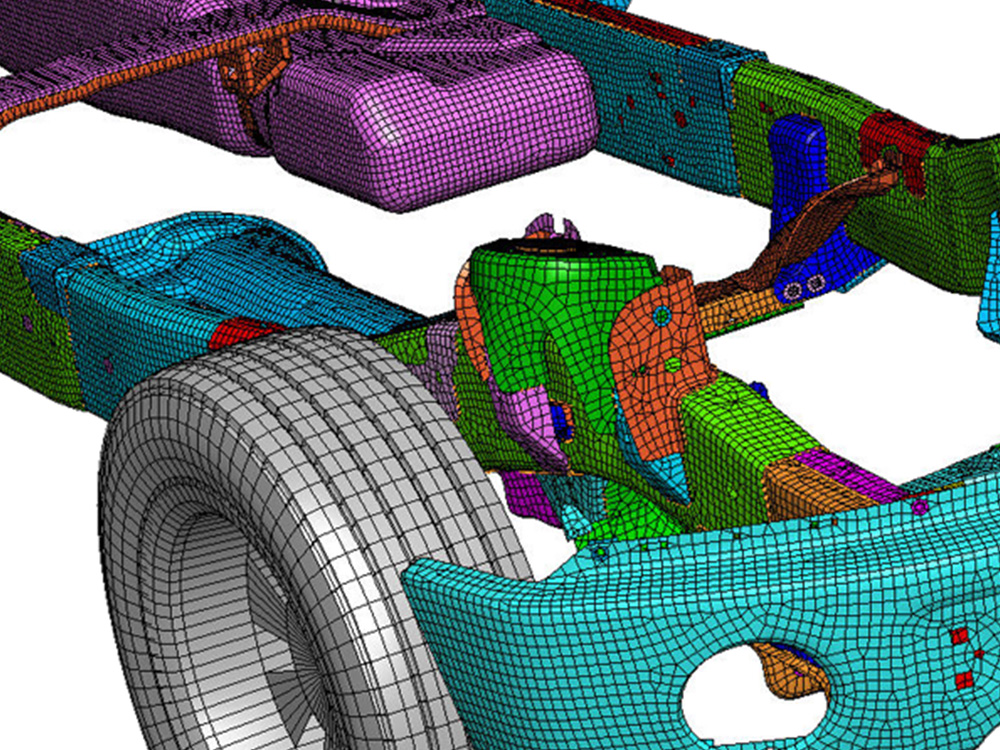

Complete finite element modelling toolset

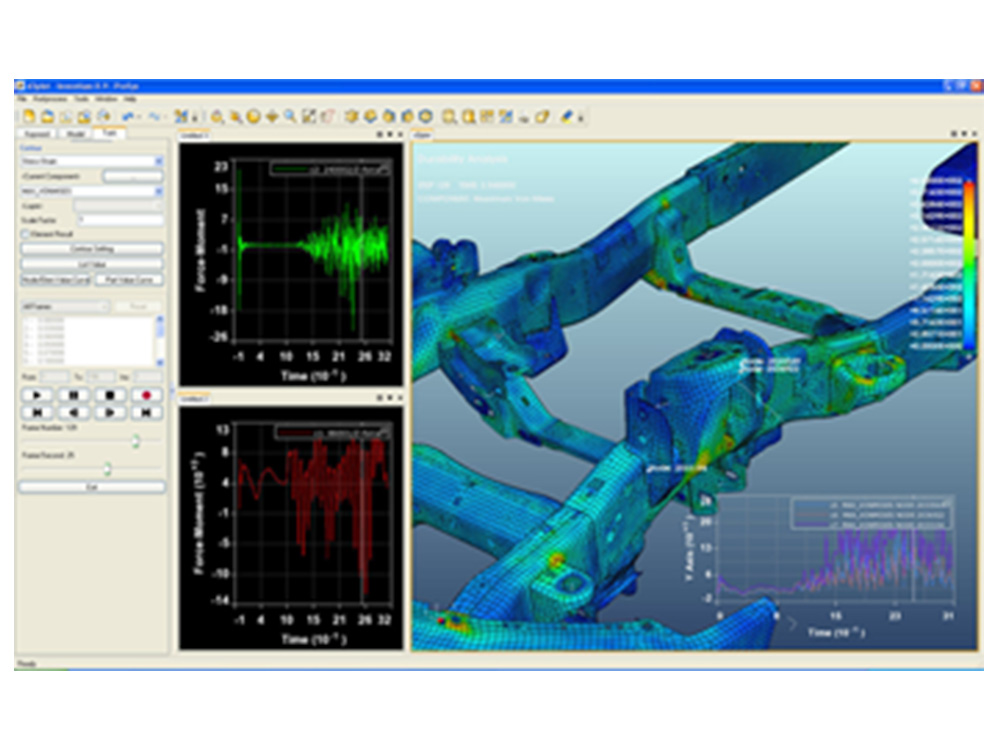

Fully configurable user interface

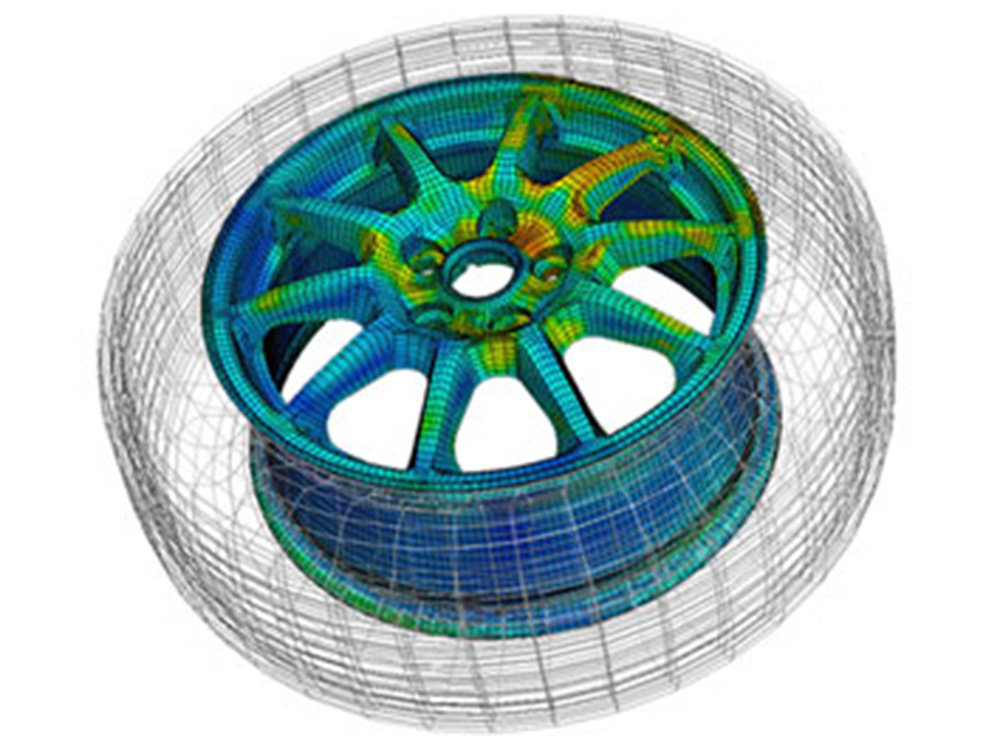

Complete finite element modelling toolset

Fully configurable user interface

  • Native Windows XP/Vista/7 & 64-bit OS support
  • High performance, openGL-based graphics
  • Ability to open & control multiple models simultaneously
  • Shortcut keys definable by user

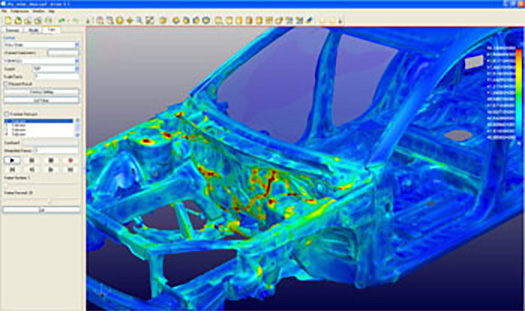

Complete results visualization

  • Stress/strain contour plotting
  • Animation of deformations & stress/strain data
  • Graphing tools for complete data analysis
  • 3D view application for stand-alone viewing of models & results

Interfaces with CAD software via standard formats

  • IGES, STEP, SAT, CATIA, DXF, UG NX, ProE, Solidworks & Parasolid
  • Import/export capability

Model data displayed in a tree-structure

  • Quickly & efficiently access all model entities

Card image view to create/edit non-graphical data

Scripting interface for all commands

Macro capability write/edit/replay

Language localization
