Ls-Prepost

LS-PrePost (LSPP) is an advanced pre- and post-processor and model editor from LSTC, preparing input data and processing the results from LS-DYNA analyses. The user interface is designed to be both efficient and intuitive. LSPP runs on Windows, Linux, and Macs utilizing OpenGL graphics to achieve fast rendering and XY plotting.

LS-PP is particularly capable of importing, editing and exporting LS-DYNA keyword files for generating LS-DYNA input files. LS-PP can be installed quickly and can be implemented on every computer because no license is required.

Features:

"Comprehensive support for LS-DYNA input and output files"
"Image output formats: PNG, TIFF, JPG, BMP, PCX, PS, PSIMAGE, GIF, VRML2"
"Movie output formats: MPEG, AVI"
"Command line interface"
Pre-Processing Features

Pre-Processing Features

  • Import CAD format: IGES, STP
  • Mesh generation
  • Mesh editing
  • Special applications for Airbag folding, dummy positioning, seatbelt fitting, Metal forming and roller hemming
  • ALE
  • Model check (element quality, contact)
  • LS-DYNA entity creation

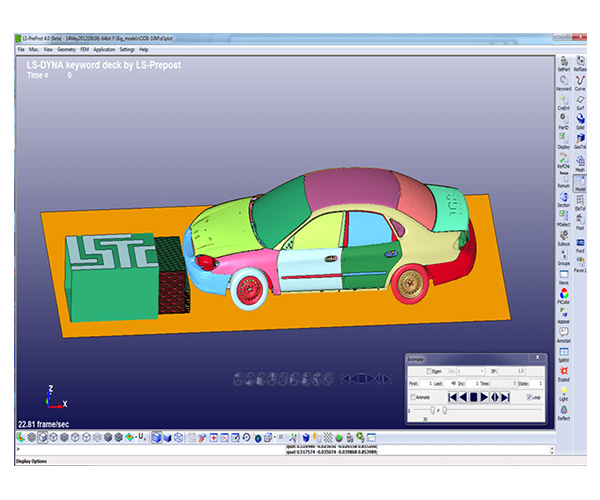

Post-Processing Features

Post-Processing Features

  • 3D animation
  • Eigen mode animation
  • BINOUT processing
  • X-Y plots
  • Contour plots
  • Overlay plots
  • Vector plots
  • Fringe plots
  • Time History Plotting
  • Particel visualisization
  • Fluid visualisization
  • DYNAIN file generation
  • ASCII plotting
  • Section analysis
